Explore new possibilities for visualization with 3D X-ray imaging for materials research, life sciences, natural resources and industrial applications.

  • X‑ray Computed Tomography (nanoCT)
  • Scanning Electron Microscope (SEM)
  • Digital Radiography (DR)
  • Energy-Dispersive X‑ray spectroscopy (EDX)
  • 3D volume CT
  • Non-destructive testing (NDT) – 2D and 3D
  • Quality control independent of material
  • Defect recognition (voids, cracks, …)
  • Radiation safety better than 1 µSv/h

High-Resolution Electron Microscopy

CT-NANO has the best resolution available on the market at this energy level, which allows the inspection of materials or structures which were not possible before.

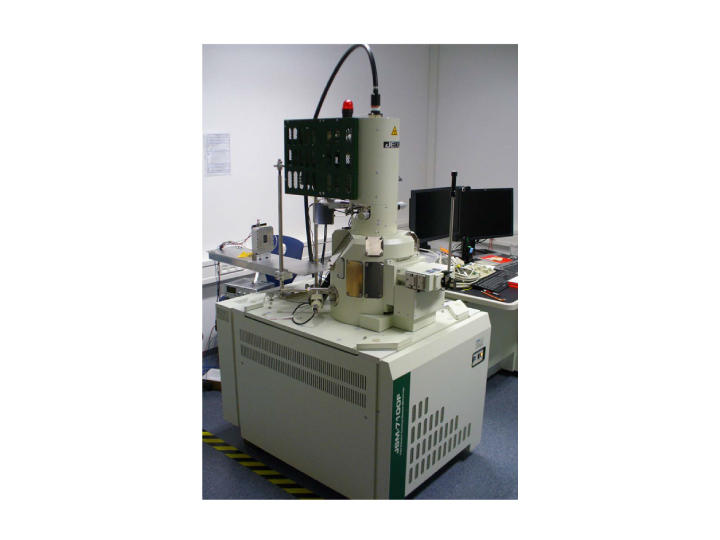

The CT-NANO is a fully operating scanning electron microscope with capabilities of Nano-CT measurements on specimens like light-metal-alloys and fiber composites.

It delivers Voxel-sizes in ranges from 30 nm to 10 μm, a geometrical magnification up to 50nm (FWHM) and a maximum photon energy of 30 keV. An EDS-Detector provides an additional correlation between XRF signal of specimen and reconstructed volume of the CT-NANO.

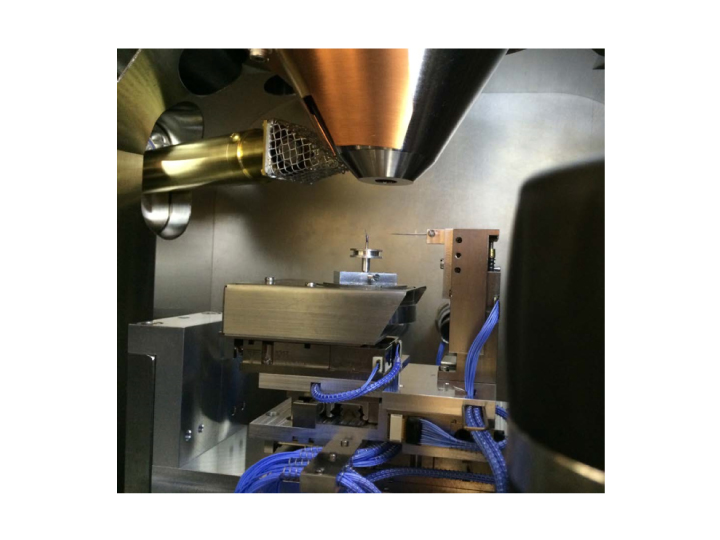

With a direct-converting detector and a size-optimized field-of-view, the CT-NANO provides a representative test volume. The CT-NANO X-ray microscope is based on a scanning electron microscope and uses the electron-beam for generating the x-ray at an ultra-sharp needle with a focal spot size of 70 nm.

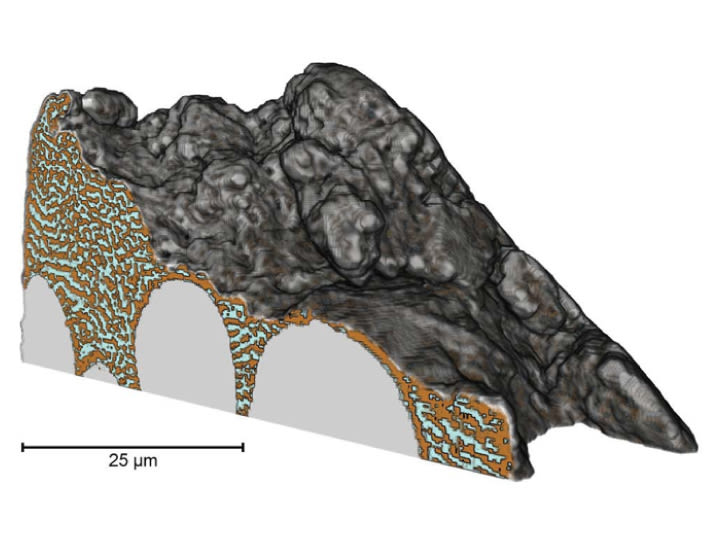

Significantly better performance and  results than standard submicron CT. NanoCT provides - better than polish cut images - 3D Data about precise volume  information e.g. of different phases.
Radioscopic Image of Aluminum alloy cylinder, exposure time 300 s



Field of view

Ø 49 - 3414 μm

Geometric magnification

20 x - 1400 x

Voxel sampling

39 - 2.750 nm

Spatial resolution

up to 60 nm





< MnKα 131 eV


cooled SSD

Active area

30 mm²



< 0.7 nm

Probe current

max. 500 nA



Electron gun

In-lens Schottky Plus field emission gun

Digital Radiography-Mode


max. 30 kV


max. 500 nA


20 x - 5500 x

No. of Pixel

max. 1280 x 1280

Pixel size

55 μm
