CT-MINI
CT-MINI – the Original – with minimal space requirements, suited to inspect plastics, ceramics, and light metals.
Industrial X‑ray Computed Tomography (CT)- Non-destructive testing (NDT) – 2D and 3D
- Defect recognition (voids, cracks, …)
- Contactless metrology
- Easy operation
- Radiation safety better than 1 µSv/h
- Desktop system
Get in Touch with us
Want to find out more about a CT system for your organisation or institution?
Contact us.
Application Cases
Material research

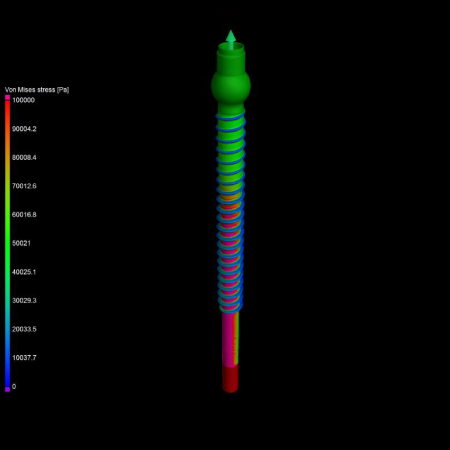

Tension simulation on a screw to determine where the part would be placed under stress when in use. The amount of stress can also be simulated and measured. This helps to determine whether the design of a part is adequate for its intended purpose.
Mini size, maximum performance
This CT from ProCon X‑Ray GmbH “performs as laboratory micro CT by excellent CT results in real-time”, comment of Alper Bakic, our Applications Specialist.
The room-saving CT-MINI can be equipped with micro-focus X‑ray tubes or 100 kV or 130 kV, depending on specific customer requirements. The focus-detector distance can be adjusted to optimize the contrast and speed up scanning times.
It is equipped with a 49.5 µm pixel CMOS detector with 150 x 120 mm. A sliding door opens wide in order to easily mount the specimen up to 200 mm onto the rotation table. The lifting axis helps to setup the ideal height for each individaul scan.
The CT-MINI system is ideal for nondestructive testing (NDT), materials analysis, rapid prototyping, and many more. Its small footprint allows the CT device to be placed on a desktop.
Specifications
The CT-MINI is available in 100 kV and 130 kV models.
X-Ray source | 20 - 100 kV / 20 - 130 kV |
Detector | 6.7 Megapixel |
Highest spatial resolution | < 3 μm |
Smallest voxel size | 1,0 μm / 1,7 μm |
Max. object dimensions | Ø 360 x H 185 mm |
Max. scan size | Ø 200 x H 125 mm |
Focus Detector Distance | 415 mm |
Focus Object Distance | 8 - 345 mm / 13 - 345 mm |
Number of axes | 5 |
System dimensions (L x W x H) | 1250 x 575 x 800 mm |
System weight | ~500 kg |
Hardware and Software Made for each other
The best hardware needs a great software program to run it and to help you get the best results out of your investment.
We create our own software, as well as recommend software from third parties based on your specific use case.
Learn more about software for your CT system here
Software
