CT-MICRO
The latest System generation by ProCon X‑Ray is perfectly coordinated to the requirements of smaller spaces where high performance is a non-negotiable.
Laboratory X‑ray Computed Tomography (CT)- 3D volume CT
- Optimized scan-time
- Easy operation
- Radiation safety better than 1μSv/h
- Mobile deployable
- CT reconstruction in real-time
- Ring artefact suppression
- Desktop system
Made for the Laboratory
3D X-Ray System with 100 kV Microfocus-Source and full safety Cabinet

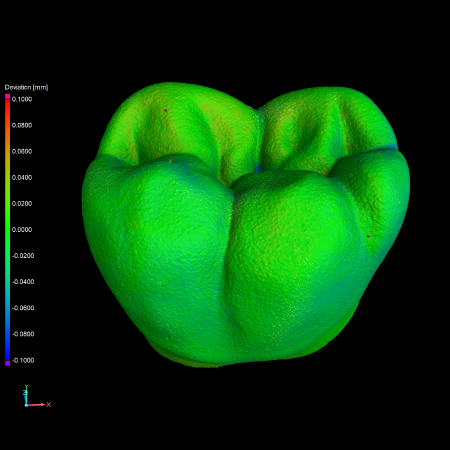

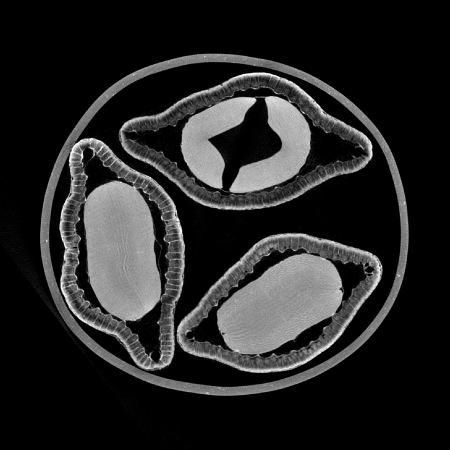

Fast and easy to use, CT-MICRO, the micro-computer tomograph from ProCon X-Ray GmbH provides 3D visualization and CT slices at any desired site of quality control or academic research.
The CT-MICRO is configured with a high-resolution 100 kV X-ray tube and a large flat panel detector. The precision rotary table can be positioned between the tube and the detector as required for the needed magnification. The max. spatial resolution is 3 μm.
Components mounting fully adjustable
The constructions to mount the tube, X-ray-detector and specimen have all freedom to adjust orthogonality of the X-ray beam to the middle pixel. This adjustment is made once during system assembly at the factory.
Specifications
X-Ray source | 20 - 100 kV |
Detector | 6.7 Megapixel |
Highest spatial resolution | < 3 µm |
Smallest voxel size | < 3 µm |
Max. object dimensions | Ø 250 x H 230 mm |
Max. scan size | Ø 107 x H 100 mm |
Focus Detector Distance | 300 mm |
Focus Object Distance | 7 - 250 mm |
Number of axes | 3 |
System dimensions (L x W x H) | 1090 x 500 x 450 mm |
System weight | ~250 kg |
Hardware and Software Made for each other
The best hardware needs a great software program to run it and to help you get the best results out of your investment.
We create our own software, as well as recommend software from third parties based on your specific use case.
Learn more about software for your CT system here
Software
