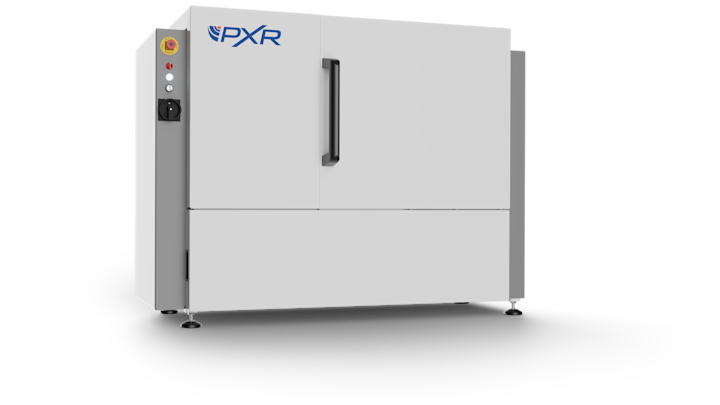

CT-COMPACT

CT-COMPACT, the most versatile benchtop system for 3D-CT requirements. “We enable the CT-COMPACT, performing as the most flexible micro CT system on a bench” Joachim Gudat, the founder and CEO of ProCon X‑Ray GmbH, says, during the companies 10th anniversary.

Industrial X‑ray Computed Tomography (CT)
3D volume CT
Non-destructive testing (NDT) – 2D and 3D
Quality control independent of material
Defect recognition (voids, cracks, …)
Contactless metrology
CT reconstruction in real-time
Ring artefact suppression
Easy operation
Radiation safety better than 1 µSv/h
Desktop system

Versatility on a Benchtop

The space-saving CT-COMPACT can be equipped with micro-focus X‑ray tubes capable of operation up to 180 kV, depending on specific customer requirements. The focus-detector distance can be adjusted to optimize the contrast.

A range of flat panel detectors is available, enabling the highest magnification. Due to the horizontally oriented X‑ray beam, the CT scan remains uninfluenced by gravity.

The CT-COMPACT system is ideal for nondestructive testing, materials analysis, metrology and, rapid prototyping. Due to our cabinet temperature concept the CT-COMPACT holds the certificate of proven measurement uncertainty, by Q‑DAS.

Specifications

X-ray Source	0 - 130 kV up to 39 W 5 µm min. Focal Spot Other sources possible on request up to 180 kV
Detector	3 Megapixel 75 µm pixel size 1944 x 1536 pixel Many other detectors available on request
Spatial resolution	< 3 µm
Voxel size	< 3 µm
Max. object size	Ø 200 x H 200 mm
Max. scan size	Ø 120 x H 100 mm Larger working space available on request
System weight	500 kg (including table)
Power supply	100 - 240 VAC, 50/60 Hz

Operating & Imaging Software

Hardware and Software Made for each other

The best hardware needs a great software program to run it and to help you get the best results out of your investment.

We create our own software, as well as recommend software from third parties based on your specific use case.

Learn more about software for your CT system here

Software

Computer screen with ct scans displayed.
